Ceramic Media Shape Guide: Cylinders, Triangles, Cones and Angle Cuts

Choosing ceramic media shape is a geometry decision, not a shortcut based on a shape name. Cylinders, triangles, angle-cut pieces and other profiles contact edges, flats, recesses and openings differently. Start with the part drawing and the features that must be reached or protected, then screen candidate media against lodging, separation and finish risks in a controlled sample trial.

Start with the feature, not the media catalogue

Before comparing shapes, mark the part features that control the decision: outside edges, broad faces, slots, holes, thread entrances, blind pockets and thin walls. Also record which surfaces may accept edge change and which must retain their original geometry. A media shape that reaches one feature can bridge across another, lodge in an opening or leave a witness pattern on a cosmetic face.

Use the part drawing to identify the smallest accessible opening and any two-point or three-point trapping condition. Nominal media dimensions alone are not enough because media wears and the effective contact geometry changes during use. For openings and internal features, use the separate media-size guide for holes, slots and cavities.

How common ceramic media shapes change contact

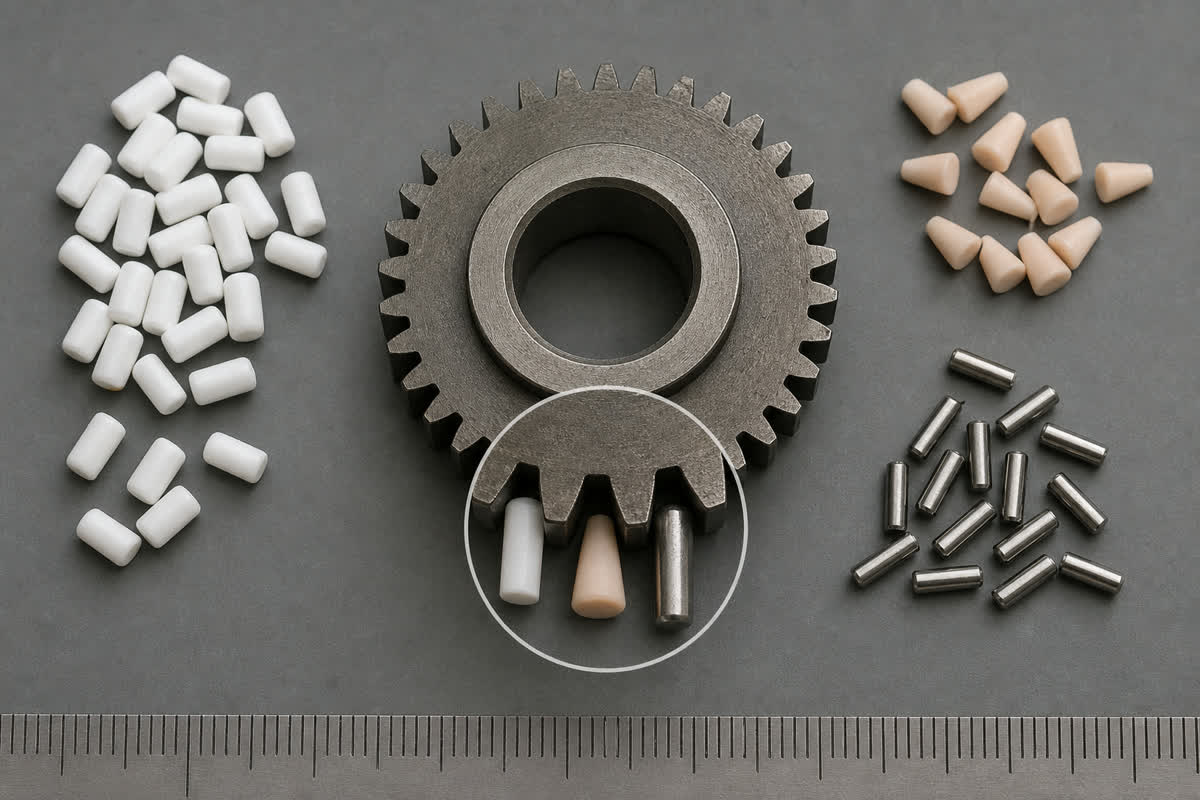

Cylinders and angle-cut cylinders

Cylindrical media offers a combination of curved side contact and end contact. Angle-cut ends can present narrower contact lines to edges and shallow features. The practical question is whether the cylinder can circulate freely around the part without aligning across a slot or entering a hole where it cannot be separated.

Triangles and triangular profiles

Triangular media presents corners and flat faces. This can make it useful when a trial needs more defined access near edges or into open recesses, but the same geometry creates orientation-dependent contact. Check whether a triangle can wedge across a feature, mark a protected face or become trapped as it wears.

Cones and tapered profiles

Tapered media can approach openings with different contact widths along its length. That does not mean it will safely enter every recess. Compare the full profile with the opening, depth and exit path, and inspect for bridging or wedging after each trial step.

Stars and other complex profiles

Complex profiles provide multiple contact points, but their fit and separation behavior are highly part-dependent. Do not select them simply because they appear more aggressive. Confirm that their arms or lobes cannot catch on cross-holes, slots, threads or thin features, and verify that the worn profile remains separable.

Shape is only one part of media selection

Ceramic formulation, abrasive behavior, density, size, wear state and the machine motion all affect the result. Water and compound conditions also influence transport, cleanliness and residue. Treat the shape comparison as one controlled variable rather than a complete process recipe. The ceramic media category can orient the material discussion, but it does not replace a part-specific trial.

Use a lodging and separation gate before the finish trial

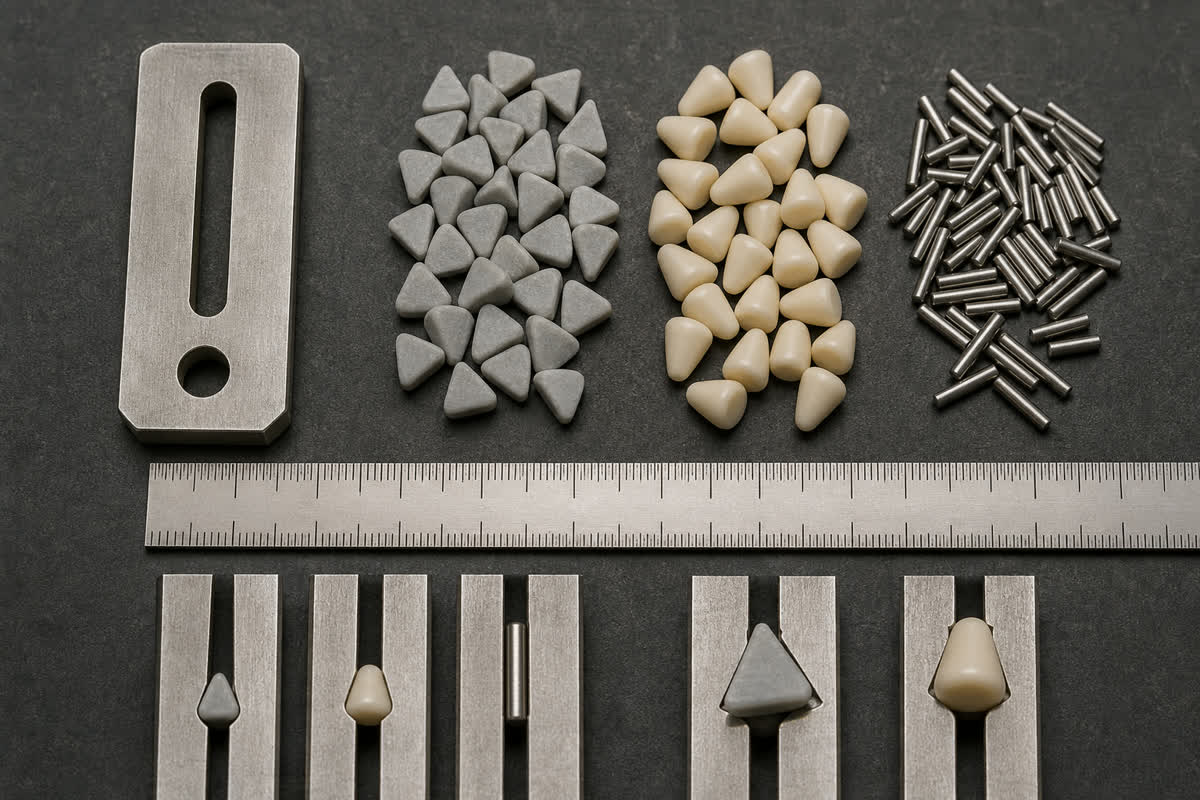

1. Place unworn candidate media against the critical openings and recesses on a clean sample part.
2. Check possible bridging, wedging and cross-hole trapping in more than one orientation.
3. Repeat the fit check with representative worn media or a conservative worn-size assumption.
4. Confirm how parts and media will be separated and how lodged pieces will be detected.
5. Only then run a small controlled batch and inspect protected as well as target surfaces.

If part-on-part contact is the main risk, media shape is only one control. Review loading, media coverage and motion using the part-on-part damage prevention guide.

Record a comparison trial that can be repeated

Keep the part lot, incoming condition, machine, load, compound condition and inspection method consistent while comparing candidate shapes. Photograph critical features before and after, record media identity and wear state, and inspect for retained media before accepting the surface result. Final media choice should be based on the required edge and surface condition plus reliable separation—not appearance alone.

Frequently asked questions

Is one ceramic media shape best for every part?

No. The useful contact pattern and the lodging risk depend on the part geometry, protected surfaces, process motion and media condition.

Should media be smaller than a hole or slot?

Not automatically. A piece that can enter may lodge, while a larger piece can bridge across an opening. Evaluate the complete shape, orientation, wear range and separation method.

Can media shape determine the final surface finish by itself?

No. Media formulation, size, wear, machine motion, compound condition and starting surface also matter. Confirm the combination in a controlled trial.

When should worn media be rechecked?

Recheck when wear changes the fit relative to critical holes, slots or recesses, and before the worn profile compromises separation or process consistency.
